Level IV Shield

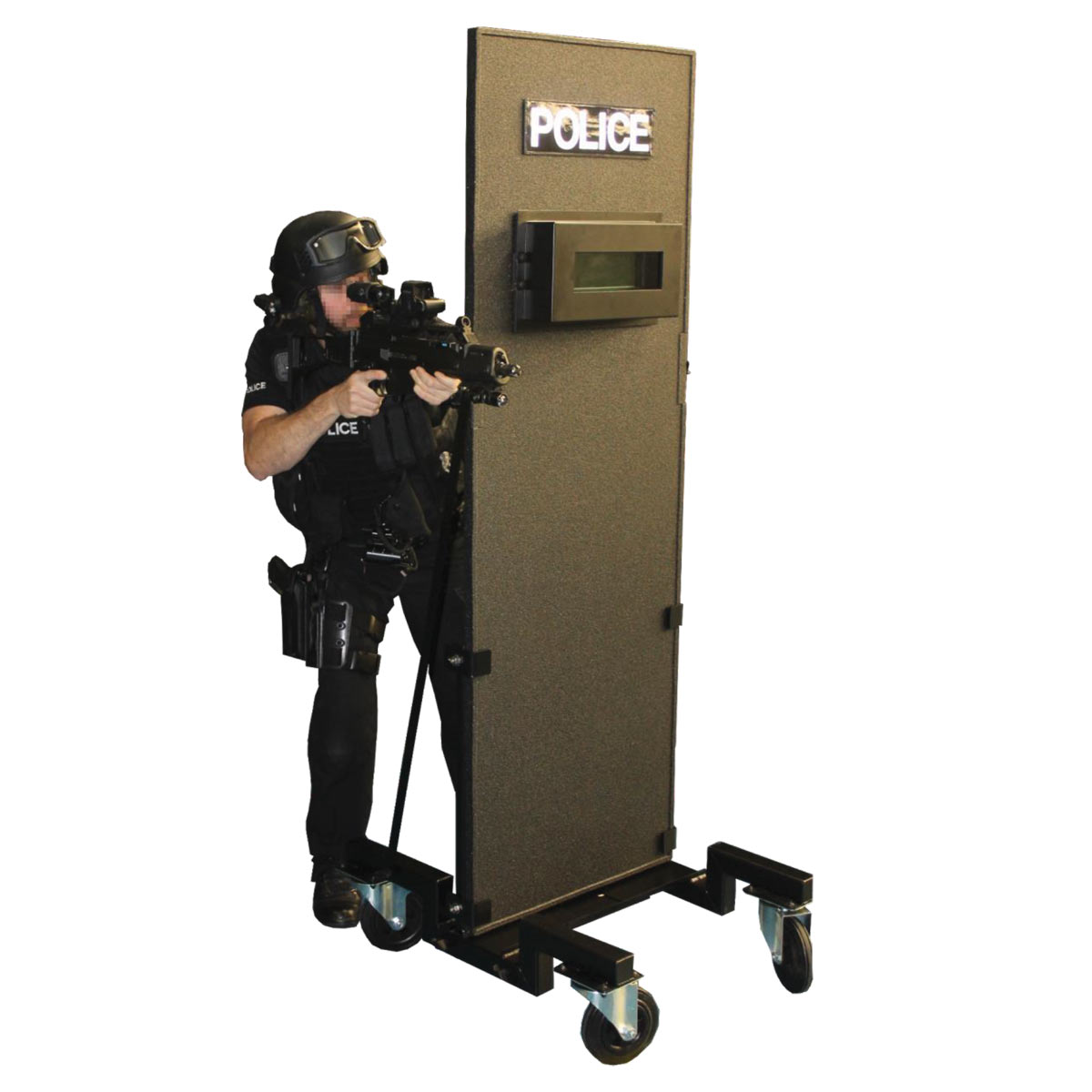

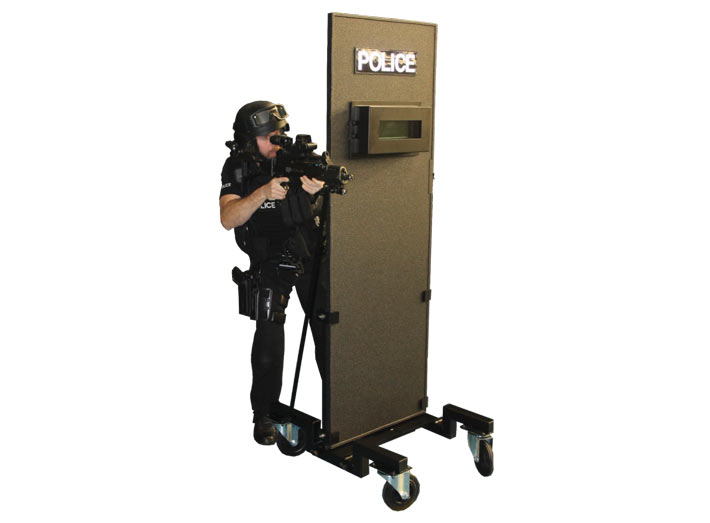

The United Shield Level IV ballistic shield is a mobile high protection shield which provides multi strike protection from armour piercing rounds, and all lesser ballistic threats. The shield is flat and is constructed from alumina oxide ceramic tiles mounted on a rigid matrix aramid backing, it weighs 42kg/m2. The trolley provides a stable and highly manouverable platform capable of smooth cornering, and rough terrain movement.


Ballistic Protection

NIJ Level IV
7.62 x 51mm AP (M2AP) Vel. 878 m/sec
7.62 x 54R mm LPS Druganov Vel. 700 m/sec
7.62 x 51mm Nato Ball Vel. 840 m/sec
7.62 x 39mm AK47 MSC Vel. 740 m/sec
5.56 x 45mm SS109 Vel. 990 m/sec

Key Features

Market Leading Technology
Ergonomic design

Sizes & Weights
The standard size of the shield is 1000 x 500mm, however bespoke sizes are also available.
Weight - 42 kg/m2


Lighting system available
Various signs/labels (Police/Sheriff)
