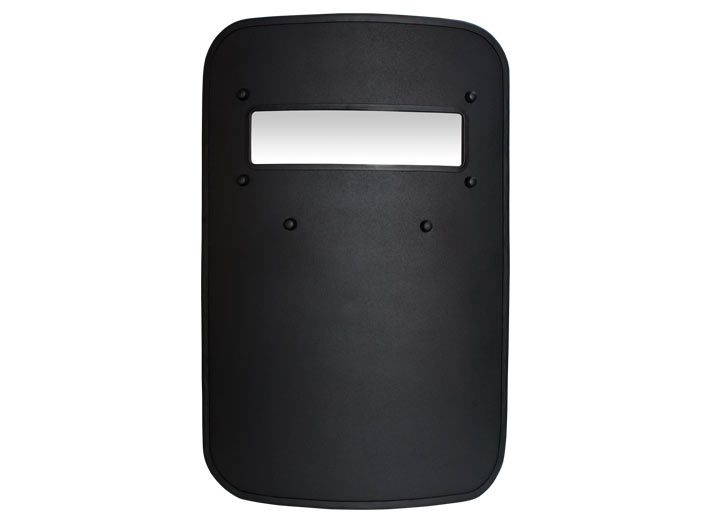

Standard Ballistic Shield

The United Shield range of ballistic shields incorporates the latest high performance materials technology and versatile handle systems that have been ergonomically developed over a number of years. They are available in a range of standard and bespoke sizes, and in a number of different protection levels.

The shields are maneuverable, lightweight and ergonomically designed to ensure maximum protection for operators in all tactical situations. Their multifunctional handles enable the shields to be used by both left and right handed people, and can also incorporate two additional handles to allow them to be held with the forearm vertically. The handles are robust, and collapsible for ease of use and storage, or fixed, depending on customers requirements.

The shields can be supplied with neck straps, allowing operators to hang them across the body, freeing up both hands for other tasks. To reduce damage to the edges of the shields when they are being used, they are covered by a special hard wearing rubber trim. Level IIIA and Level III shields have a curved radius, while Level IV shields are flat.

Specifications


NIJ LEVEL IIIA NIJ LEVEL IIIA NIJ LEVEL III NIJ LEVEL III
Size
Window
250 x 100 mm*
(10.0 x 4.0 ins)
Weight Window
250 x 75 mm
(10.0 x 3.0 ins)
Weight
Micra
450 x 650 mm
(17.8 x 25.5 ins)
N/A 3.6kgs
(7.9lbs)
N/A 6.5kgs
(14.3lbs)
Small
550 x 650 mm
(21.7 x 25.5 ins)
N/A 4.4kgs
(9.7lbs)
N/A 7.9kgs
(17.4lbs)
Medium
550 x 1000 mm
(21.7 x 39.4 ins)
8.4kgs
(18.5lbs)
18.6kgs
(40.9lbs)
Large
600 x 1300 mm
(23.6 x 51.2 ins)
10.4kgs
(22.9lbs)
24.0kgs
(52.8lbs)
Grande
600 x 1750 mm
(23.6 x 68.9 ins)
12.7kgs
(27.9lbs)
N/A N/A


*Large window, 400 x 100mm (16.0 x 4.0 ins) also available).
All weights are indicative and subject to manufacturing tolerances.
